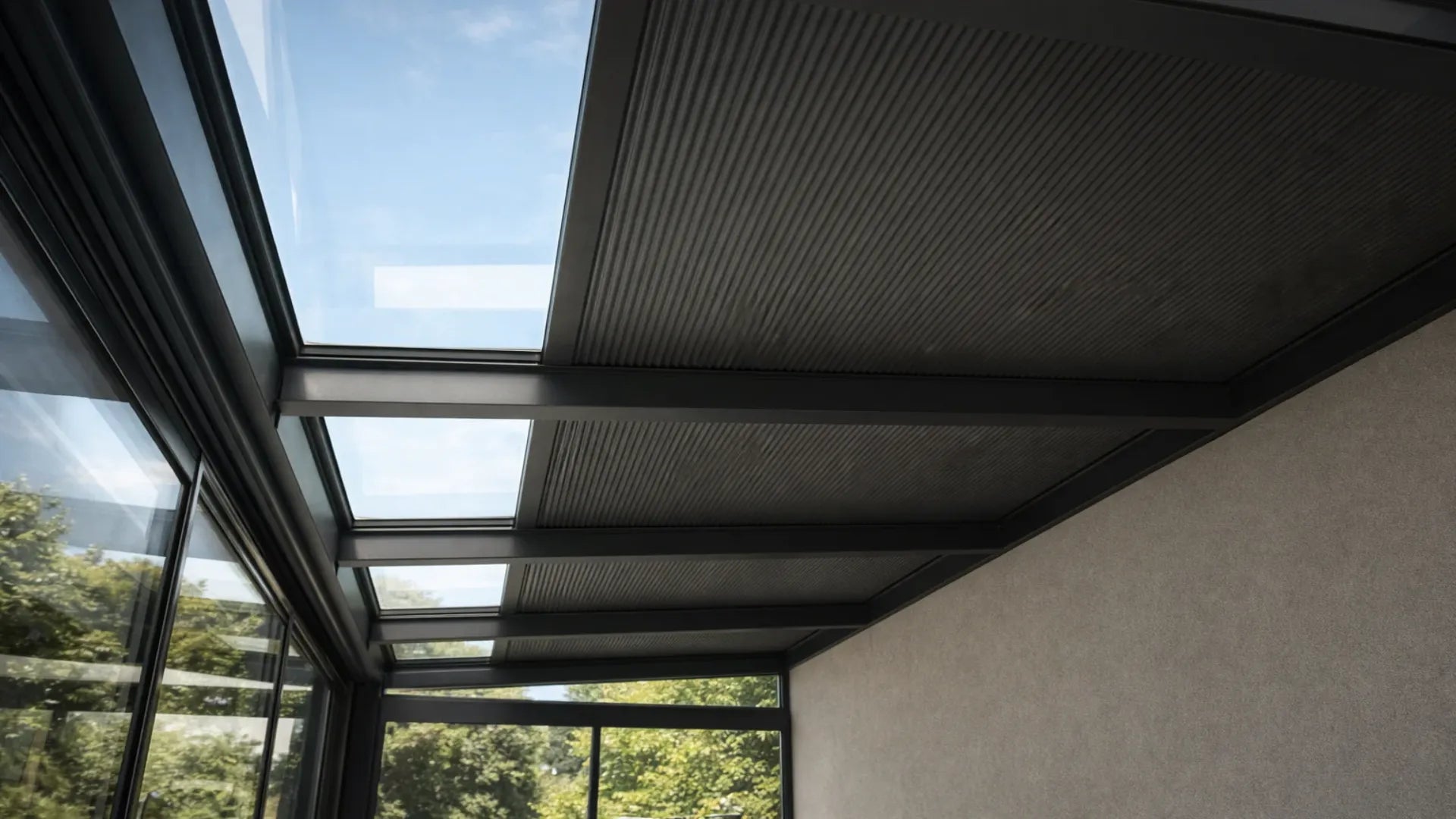

Cielo Honeycomb Custom-made
Cielo Honeycomb Custom-made
Step 1: Measure height
Use a tape measure to determine the available height at the installation point. This must be at least 50 mm to ensure correct cassette mounting.
Step 2: Measure width at mounting point
Measure with a tape measure or laser from left to right between the rafters, exactly where the cassette will be mounted. Take multiple measurements for maximum accuracy. The width must be between 400 mm and 980 mm.
Step 3: Measure depth
Measure from front to back with a tape measure or laser (max. 4000 mm). To be safe, measure this on both the left and right sides of the track. Always state the smallest measured dimension.
Step 4: Check width over the entire depth
For final inspection, measure the width between the beams again at several points across the entire depth. This prevents the system from jamming when extended. Again, always state the smallest measured dimension (range: 400 mm - 980 mm).
Light. Shadow. Perfectly balanced.
The most beautiful outdoor living space is one that effortlessly adapts to the moment. With the Cielo Honeycomb, you can transform your porch or patio into an oasis of tranquility – controlled by pure comfort.
Comfort, completely reimagined.
The new Honeycomb changes everything you know about life on your patio. It's not just sun protection. It's a perfectly engineered climate system for your home.
A chamber. Unique protection.
Honeycomb's secret lies within: a two-layer fabric forms a precise honeycomb structure. It creates an invisible, natural air barrier directly in front of the window pane. The result is pure efficiency.
Made for all weathers.
In summer, Honeycomb reflects heat before it even starts. Your patio stays pleasantly cool.
In winter, it retains heat and reduces energy loss. This protects the environment – and your budget.
Radically minimalist.
Outstanding thermal insulation, wrapped in a design of absolute clarity. Honeycomb seamlessly integrates into modern architecture. It goes unnoticed. It simply works.
Why Cielo Sunshade?
Aluminum inside.
Hydrophobic against moisture, highly reflective against heat.
Protection reimagined.
Repels moisture, reflects extreme heat.
Perfect climate.
Aluminum coated, water repellent and highly reflective.
Maximum dimensions by measure
Every Cielo Honeycomb is custom-made to the exact millimeter for your existing structure to guarantee the absolute stability of our high-end system.
Designed for generations.
| Frame & Cassette | Premium extruded aluminum, scratch-resistant powder-coated (textured) |
| Profile Selection | Anthracite RAL 7016M / Black RAL 9005 / White RAL 9016M |
| Fabric Selection | Anthracite / Grey / White (High-Performance, UV & mold resistant) |
| Drive | Whisper-quiet, fully integrated motors for each individual fabric panel |
| Operation | Multi-channel remote control (frequency-controlled) |
| Placement | Direct under-counter mounting (perfectly protected from wind, rain, and dirt) |
Maximum dimensions by measure
Every Cielo Honeycomb is custom-made to the exact millimeter for your existing structure to guarantee the absolute stability of our high-end system.
